Description
★ Detailed introduction

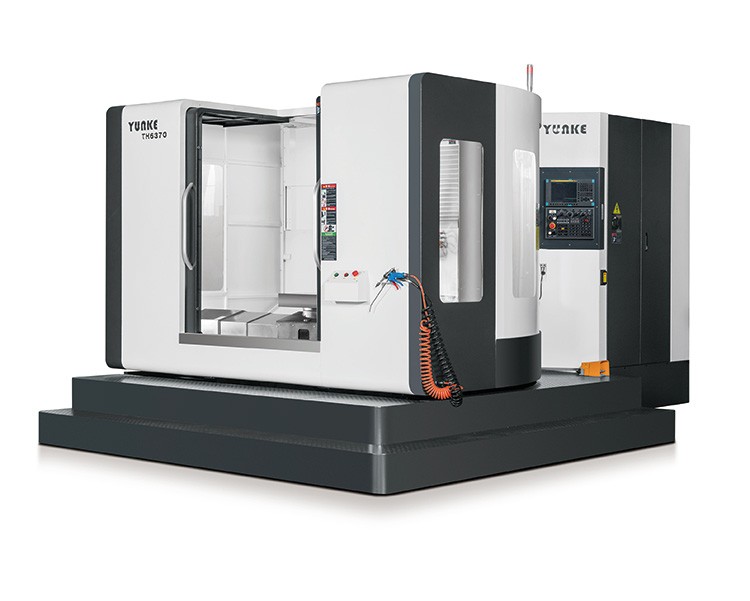

The TH-6370 horizontal machining center features high speed, high precision, high reliability structure, high rigidity, high power, high torque, heavy cutting, and other characteristics, which can fully utilize efficient production and high-precision machining performance. The combination of powerful cutting ability, excellent accuracy, and performance makes milling and boring operations simple and easy. The three-axis lead screws are pre-stretched, which can eliminate transmission backlash and pre-compensate for errors caused by temperature rise, ensuring the machining accuracy of parts.
Application scope:
The TH-6370 horizontal machining center features high speed, high precision, high reliability structure, high rigidity, high power, high torque, heavy cutting, and other characteristics, which can fully utilize efficient production and high-precision machining performance. The combination of powerful cutting ability, excellent accuracy, and performance makes milling and boring operations simple and easy. The three-axis lead screws are pre-stretched, which can eliminate transmission backlash and pre-compensate for errors caused by temperature rise, ensuring the machining accuracy of parts.
Application scope:
Efficient processing of parts, widely applied in aerospace parts processing, multi-cavity milling, drilling, boring, tapping, and other processes in the electronics industry
Product Features:

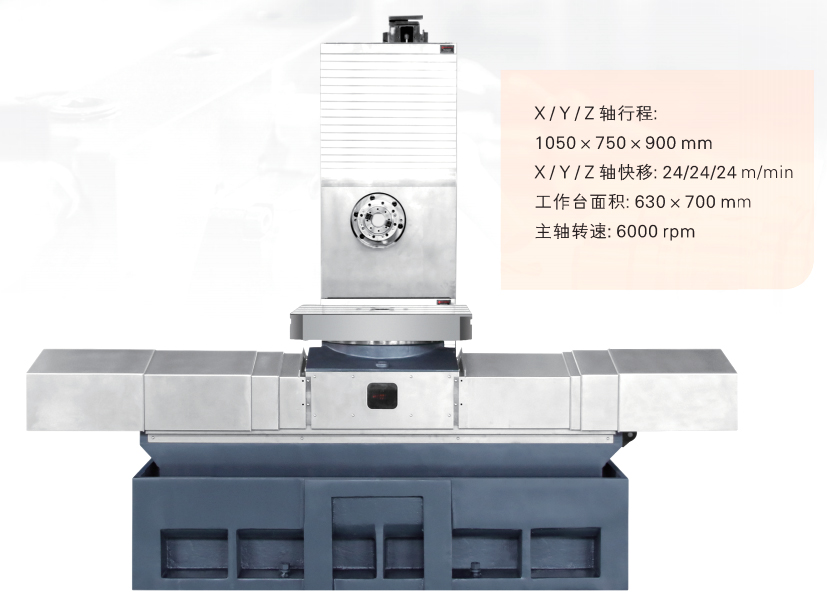

The base adopts a "T" shape layout, featuring high structural rigidity and producing no overturning moment throughout its full range of motion.
The base casting is processed using a high-precision five-sided gantry, which allows for milling, drilling, and tapping of all five sides with just one setup, reducing setup errors and enhancing machining accuracy.
The lead screw utilizes a universal combination angular contact bearing with dual support and pre-tensioning to ensure transmission accuracy.
Equipped with heavy-duty high-precision roller guides, it can withstand heavy cutting loads and exhibits excellent shock absorption.
Equipped with a high-precision spindle from Taiwan, operating at a standard speed of 6000rpm, and featuring a spindle air curtain protection device, it ensures high precision, stability, and longevity of the spindle.
The main shaft adopts a high-power, wide-range, constant high-torque output motor.
The workbench utilizes imported high-precision gear plates for positioning, achieving a positioning accuracy of ±5" and a repeatability of ±3"
